SloMo Elite-C-OLLHN

with JLCooper Optical Jog Only Mechanism

SloMo Elite-C is a compact compact Sports/SloMo control surface, expressly made for software developers and OEMs.

This third generation controller consumes 33% less desk space. It retains full size controls and buttons, arranged in a compact and familiar layout, making it perfect for remote trucks and other locations where space is at a premium.

It closely integrates with your proprietary software to create an elegant and complete Slow Motion solution.

SloMo Elite-C built for speed and designed to withstand the rigors of daily use in broadcast sports, instant replay, scoreboard, and other applications.

It’s the first product to utilize our new Hall effect T-Bar, with superior strength and increased 10 bit resolution (1024 steps).

The ELITE-C-OLLHN has the standard JLCooper Jog Only Wheel. Other models include JLCooper Jog and Spring Return Shuttle, Electro-Magnetic Jog Wheel, and JLCooper Jog/Shuttle mechanism.

Built-in Ethernet Interface supports TCP/IP (Client/Server) and UDP (Static or DHCP) configuration.

Contact JLCooper today for complete customization options, protocol, developer documents and other details.

SloMo Elite-C Models...

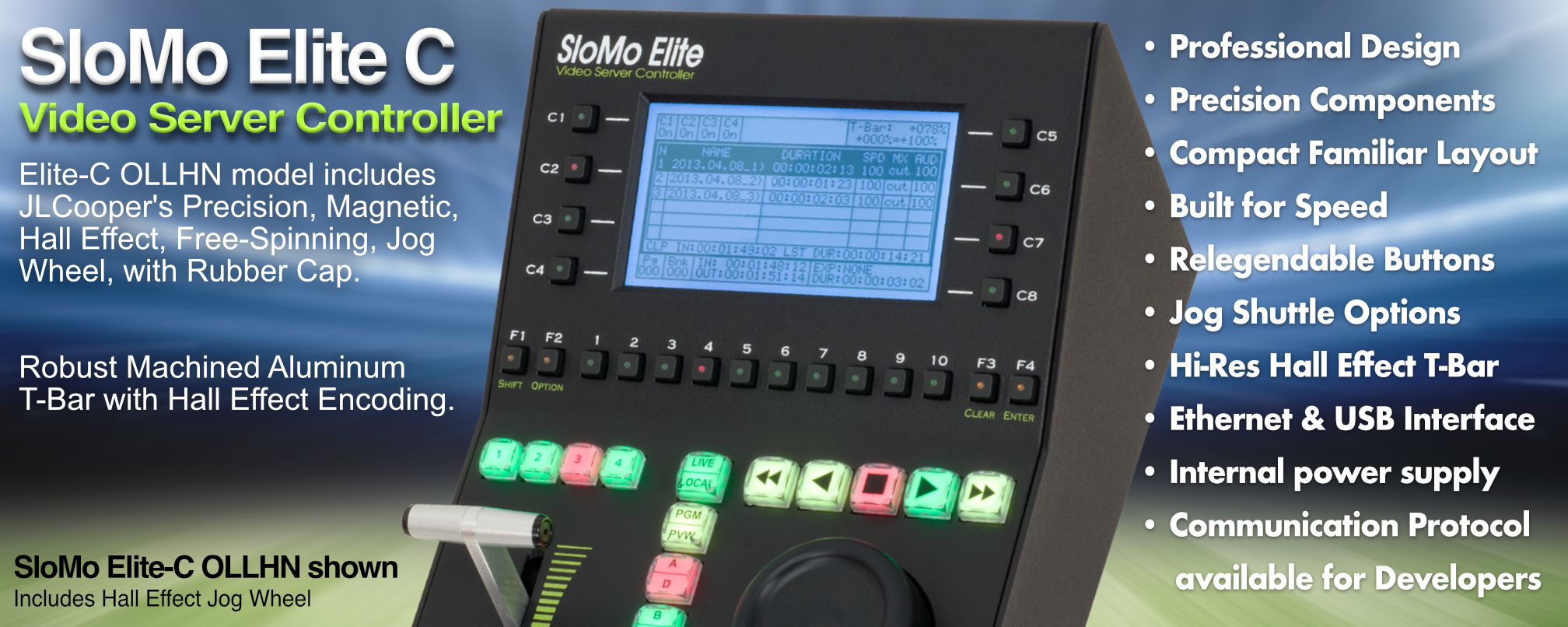

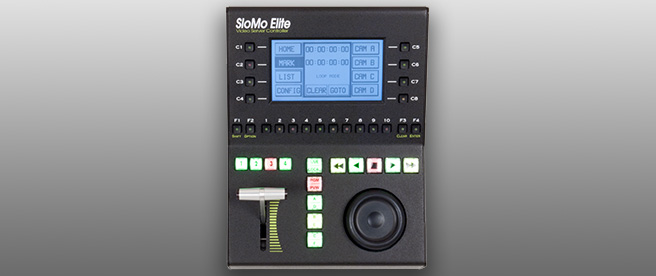

ELITE-C-OLLHN (Model as shown with JLCooper Jog Only Wheel))
ELITE-C-ELLHN (Model with Electro-Magnetic Jog Wheel)
ELITE-C-SLLHN (Model with JLCooper Jog and Spring Return Shuttle)
ELITE-C-JLLHN (Model with JLCooper Jog/Shuttle)

Slomo Elite-C Features

• Precision, Professional Quality Components
• 4.5” x 2.5” LED Backlit White Graphic Display, 240 x 128 pixels
• Jog/Shuttle Options; New JLC Jog Wheel with Spring Return Shuttle Ring, JLC Electro-Magnetic Jog Wheel, JLC Jog/Shuttle, JLC Tall Jog Only Knob w/Rubber Cap
• Tri Color LED Relegendable Keyswitches
• Hi-Res 10 Bit Hall Effect T-Bar Mechanism (1024 Steps)
• USB 2.0 Full Speed - Drivers for Windows and Mac OS
• USB Serial Port Emulation

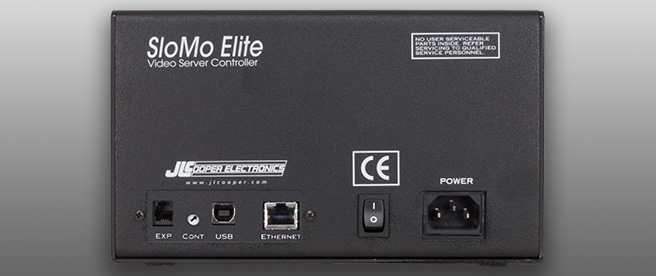

• Both USB and 10/100 Ethernet Interface (Standard)
• Supports TCP (Client/Server) & UDP - Static or DHCP Configuration
• Custom finishing and silkscreen available for quantity orders
• Internal international switching power supply (Standard)

Physical Specifications

• Size 10.6 in (26.92 cm) x 8.2 in (20.828 cm) x 4.75 in ( 12.065 cm)
• Weight 4.6 lb (2.09 kg)
