Sports/SloMo Control Surface
SloMo Elite is a new Sports/SloMo control surface, expressly made for software developers and OEMs. New options include Hall effect T-Bar with 10 bit resolution (1024 steps) and Electro-Magnetic Jog Wheel.
Its advanced design provides an incredible number of configuration options, without any of the costs normally associated with developing hardware, by allowing us to create custom configurations using standard parts.
It's packed with every possible feature we could think of, plus future upgrade capabilities. It closely integrates with your proprietary software, creating an elegant and complete control package. Virtually every aspect of the product can be customized to your precise needs.
A new Electro-Magnetic Jog Wheel includes a host controlled brake that prevents accidental jogging when not in use and provides for Dynamic Detents. Other Jog Wheel Versions J and O are also available.
Elite-C is the first JLCooper product to incorporate our new Hall effect T-Bar, with superior strength and increased 10 bit resolution (1024 steps).
This is a complete controller, built for speed and designed to withstand the rigors of daily use in broadcast, sports, instant replay, scoreboard and other applications.
New - Electro-Magnetic Jog Mechanism
SloMo Elite has a new 3rd generation Electro-Magnetic Jog Wheel, which includes a (host controlled) brake that prevents accidental jogging when not in use. Advanced capabilities provide for Dynamic Detents, that can be adjusted in real time to create shuttle and other modes of operation.
Contact JLCooper today for additional configuration, customization options, protocol, development documents and other details.
SloMo Elite Standard Models...
SloMo Elite with Re-Legendable LED Illuminated Buttons
ELITE-SM-JLLHN SloMo Elite with JLCooper Optical Jog/Shuttle
ELITE-SM-OLLHN SloMo Elite with JLCooper Optical Jog Only mechanism
ELITE-SM-ELLHN SloMo Elite with JLCooper Electro-Magnetic Jog mechanism
SloMo Elite with Remotely Re-Legendable Hi Res 64 x 32 RGB LCD Buttons
ELITE-SM-J66HN SloMo Elite with JLCooper Optical Jog/Shuttle
ELITE-SM-O66HN SloMo Elite with JLCooper Optical Jog Only Mechanism
ELITE-SM-E66HN SloMo Elite with JLCooper Electro-Magnetic Jog mechanism
SloMo Elite-C Models...

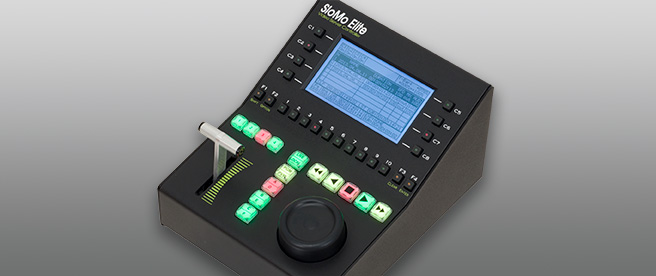

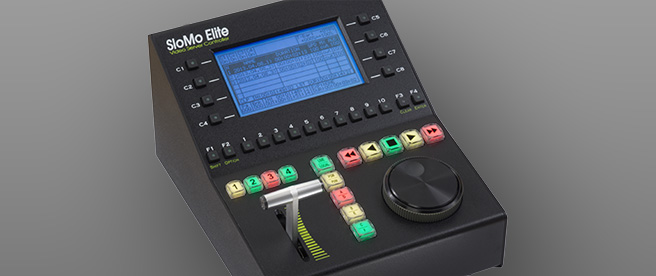

ELITE-C-ELLHN (Model as shown with Electro-Magnetic Jog Wheel)
ELITE-C-JLLHN (Model as shown with JLCooper Jog/Shuttle)
ELITE-C-OLLHN (Model as shown with JLCooper Jog Only Wheel)
- Precision, Professional Quality Components
- New Hall effect T-Bar with 10 bit resolution (1024 Steps)
- Dual Color LED Relegendable or NKK LCD Remotely Relegendable
Compact Hi-Res 64 x 32 Pixel, RGB Backlit Keyswitches
(either group of 5 switches can be LED or LCD Type)
- 4.5” x 2.5” LED Backlit White Graphic Display, 240 x 128 pixels
- Jog/Shuttle Options; New JLC Electro-Magnetic Jog Wheel,
JLC Jog/Shuttle, JLC Tall Jog Only Knob w/Rubber Cap
- New Tri Color LED Relegendable Keyswitches
- USB 2.0 Full Speed - Drivers for Windows and Mac OS
- USB Serial Port Emulation
- Both USB and 10/100 Ethernet Interface (Standard)
- Supports TCP (Client/Server) & UDP - Static or DHCP Configuration
- Custom finishing and silkscreen available for quantity orders
- Internal international switching power supply (Standard)
- Field Software Updates can be installed via USB or Ethernet
