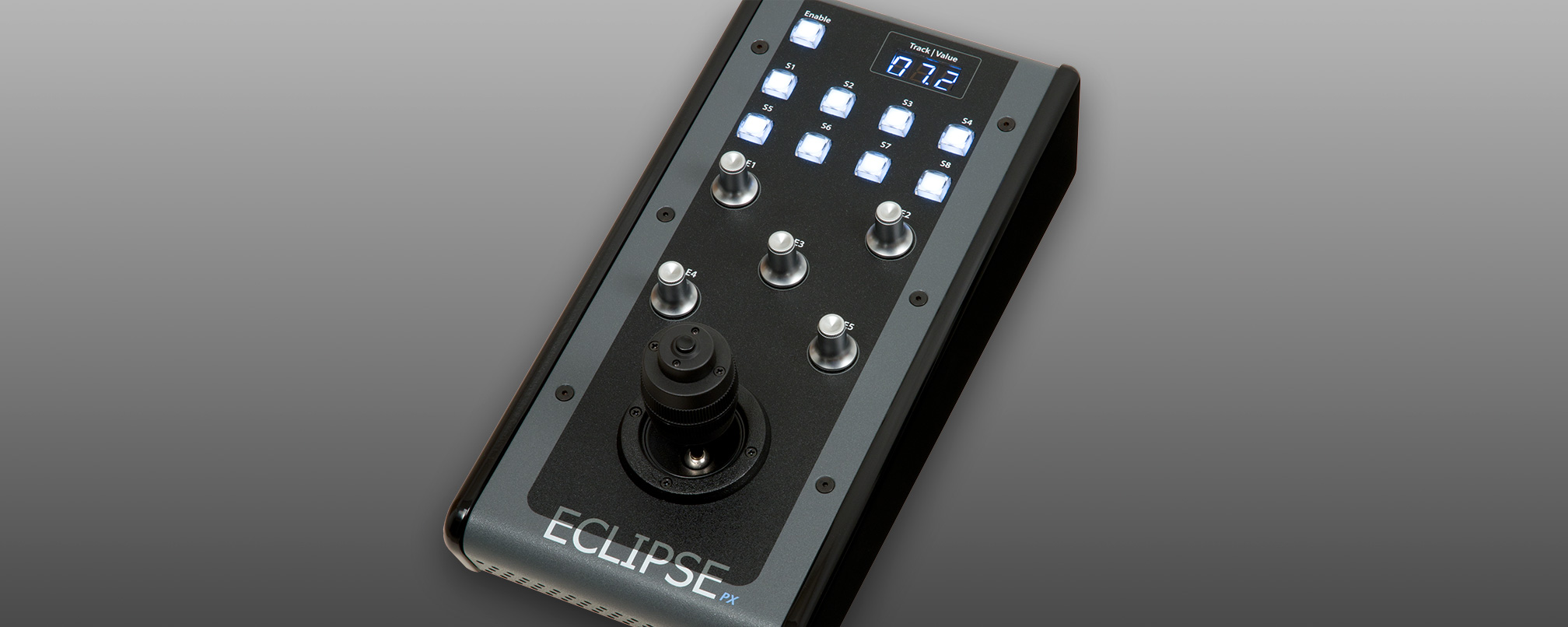

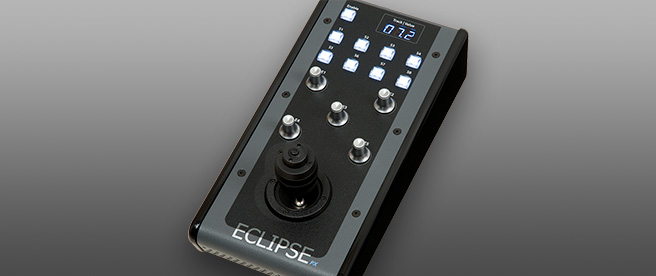

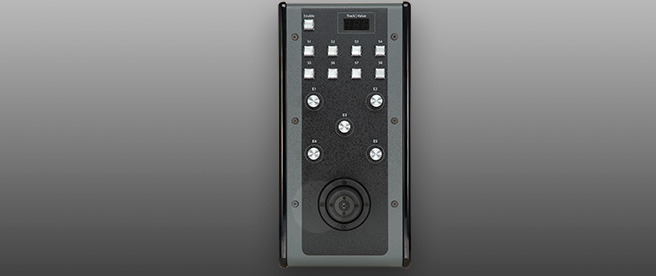

Eclipse PX

Surround Panning Joystick Controller

Eclipse PX combines a high-quality, three axis joystick with five touch-sensitive, push-button, rotary encoders, nine illuminated buttons and a three digit white LED display for indicating track number.

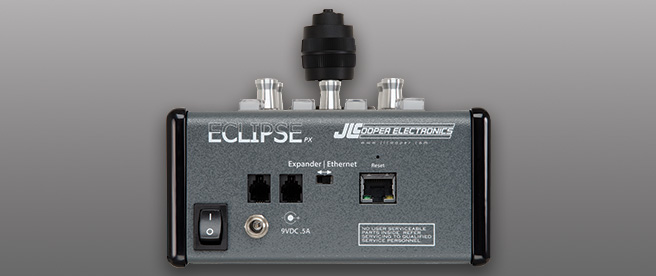

The controller can be connected to a computer, using its built–in 10/100 Ethernet interface (TCP/IP and UDP supported). It can be physically attached to other Eclipse units using Eclipse Joiner.

Eclipse PX is functionally identical to the Nuage Panner and can be used to control surround mixing in Steinberg Cubase, Nuendo and other applications.

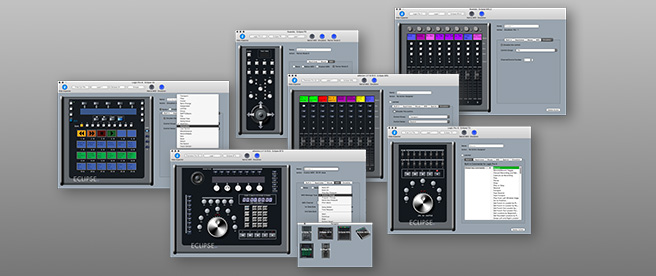

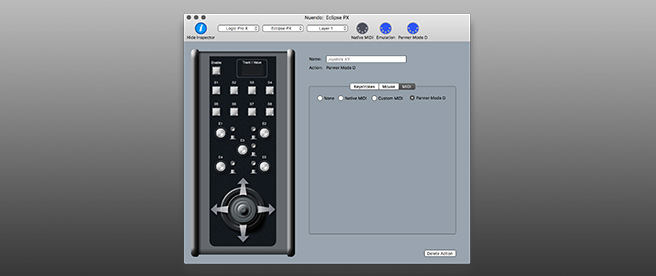

With its own custom software plug-in for Steinberg Nuendo, Eclipse PX provides precise control of all automatable surround automation parameters.

Controls include real time control and automation of Joystick X, Y, Global Divergence, Auto Orbit, Front Divergence, Rear Divergence, Center Distribution, Front-Rear Divergence, LFE Level and Manual Orbit.

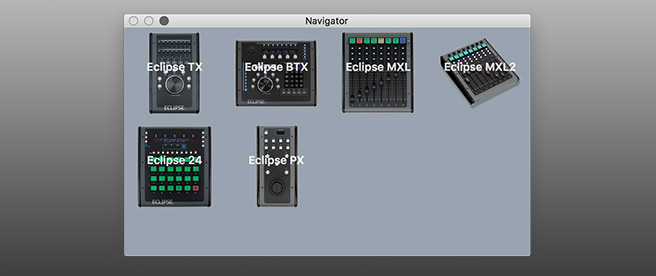

Software developers can take advantage of the Eclipse PX as a stand alone unit or combine it with other Eclipse units to make a specialized controller for your specific needs. Eclipse PX is compatible with Pro Tools (Mac Only) and Logic Pro X. Direct Support in Telos Alliance Linear Acoustic AMS - Authoring and Monitoring System.

Specifications

• Width - 6 in (15.24 cm)
• Depth - 11.5 in (29.21 cm)
• Height - 3.25 in (8.26 cm)
• Weight - 6 lb(2.72 kg)
