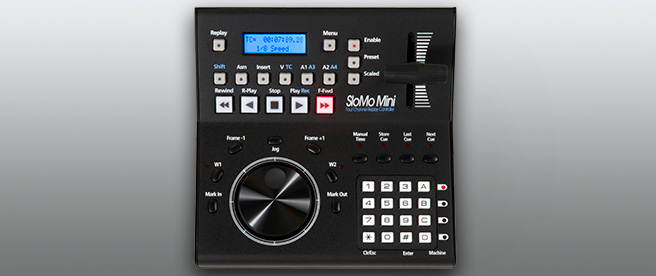

SloMo Mini RS-422

Four Channel Instant Replay Controller

• New Automated Replay Features!
• One Touch Replay with Hyperdeck & KiPro
• Browse Clips and View Clip Names

SloMo Mini’s small footprint and low cost makes it perfect for sports, scoreboard, trucks, transfer, QC, dubbing and other editing operations.

It makes precise control of professional servers, file-based recorders and VTRs incredibly fast and easy.

Features include illuminated transport buttons, Hall effect Jog Mechanism, High-Quality T-Bar, Backlit LCD Display, Numeric Keypad & Fast Access Function Keys.

New One Touch Replay, Deferred Replay and In/Out Replay modes simplify Slomo operation, so even inexperienced operators can get reliable and consistent results with minimal training.

Expandable by connecting SloMo Mini™ to GangWay for remote control of up to 16 or 32 decks/channels!

Controls AJA Ki Pro, Ki Pro Rack, Ki Pro Ultra, BlackMagic Hyperdeck Studio, Studio Pro, Studio Pro Replay, and most professional RS-422 VTRs, servers and video recorders!

SloMo Mini Features

• Simultaneous Control of up to 4 RS-422 Video Decks and file-based Video Recorders
• Quickly store up to 1000 Cues - 500 In and Out Points with Varispeed
• T-Bar for Dynamic Slow Motion - Sends Shuttle, Jog or Variable Play
• Programmable T-Bar Min-Max, Preset Speeds, Active or Passive Modes
• Log Operation useful in QC Applications
• Blackmagic Design Loop Function
• Ultra Compact Design Saves Desk Space
• Durable All Metal Construction
• JLCooper Optical Jog Wheel
• Host Mode for Developers

Specifications

• Width 7.75 in (19.69 cm)
• Depth 7.75 in (19.69 cm)
• Height 3.75 in (9.53 cm)
• Weight 2.1 lbs (1.70 kg)
